Nav-systems

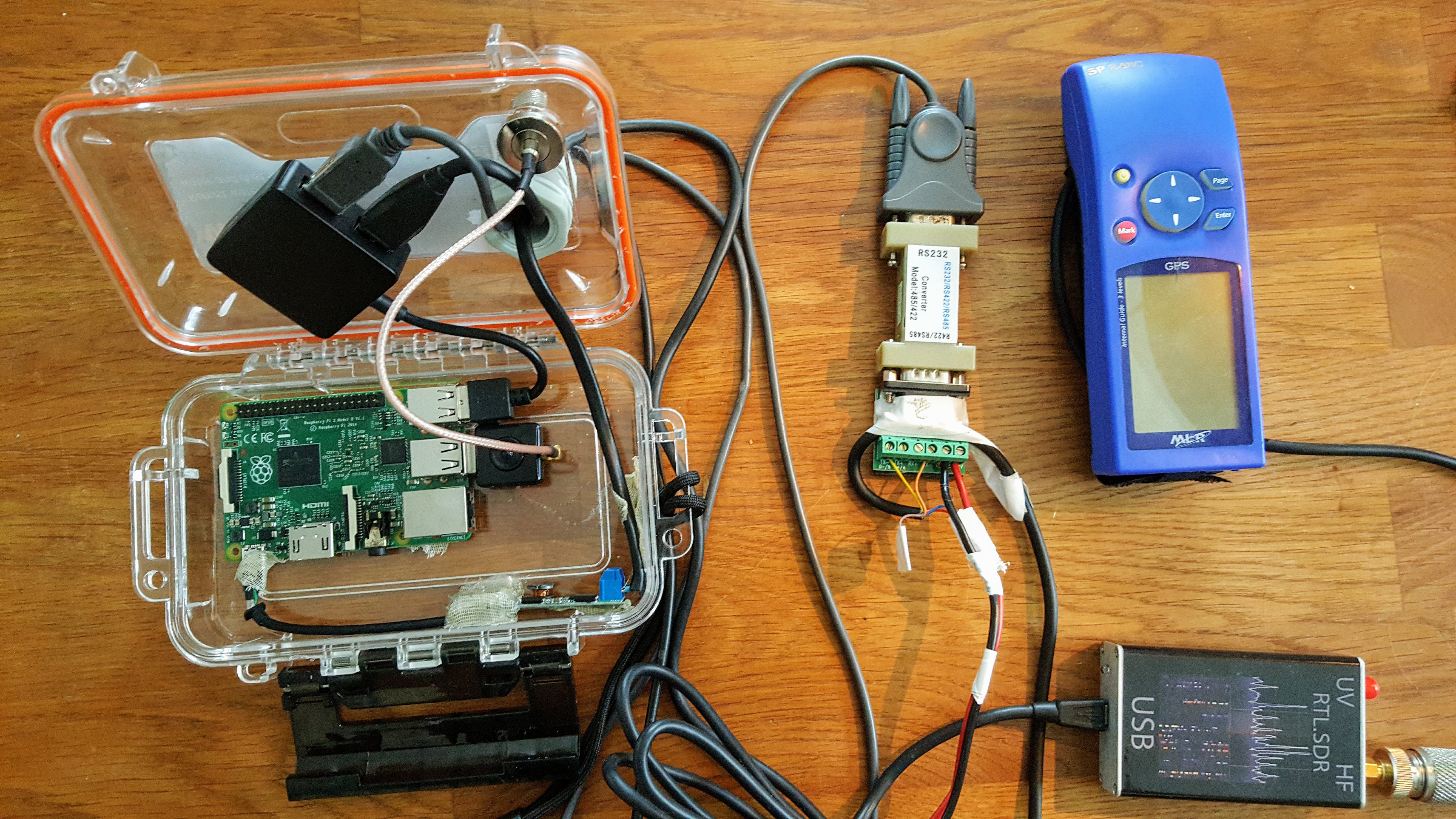

• Sailors Pie – Raspberry Pi 3b multiplexing NMEA to the network, and as redundant stand-alone nav system (based on OpenPlotter).
• Cabled and wireless network with extender (Ubiquity Bullet M2)
• Navico 3G Radar, only connected to the ethernet network, no fancy plotter
• Lenovo Miix 510 Windows computer as plotter – wireless connection receiving radar picture and NAV-data from SailorsPie

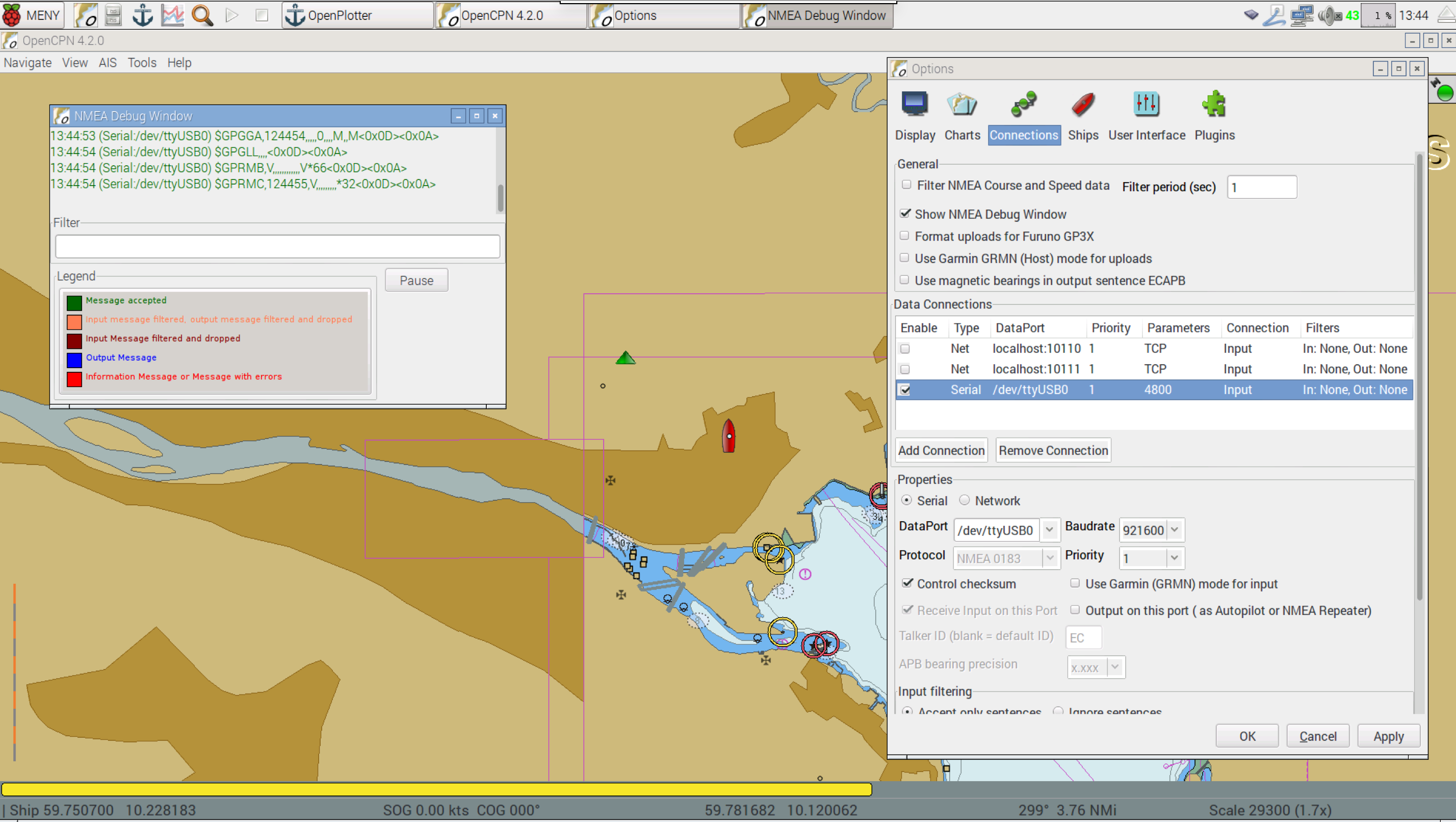

• Software; OpenCPN with Navico radar plugin
• Matsutec AIS Transceiver – NMEA to SailorsPie with AIS/GPS
• Icom 706MKIIG HF radio (SGC230 tuner) + Pactor IIusb for global email and weather info (grib/navtex/winlink)
• Aft-stay as HF antenna
• All phones, tablets and computers may connect to the network to function as alternative plotters.

All creds to Mr. Sjøli in “RaspberryPi/ Elektronikk i Båt” -Facebook group for guidance of the Raspberry pi system.

Pictures are outdated

•

•

•

Resources:

Openplotter: https://openmarine.net/openplotter

OpenCPN: https://opencpn.org/

Min Guide (Ufullstendig): SailorsPie for Dummies

Winlink (radio email) : Winlink.org
